Chip Bonding Adhesives

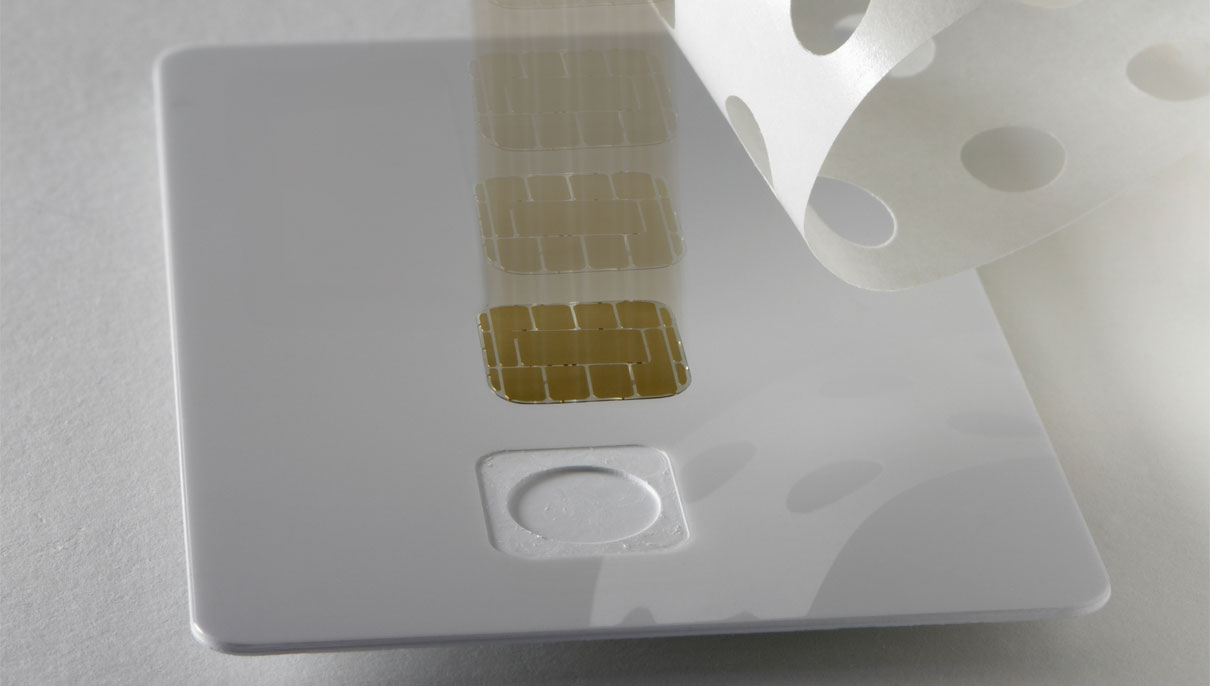

Our chip bonding adhesives are engineered for reliability and ease of use, ensuring the secure and durable embedding of microchips into cards and other smart products. Our Hi Bond™ adhesive is at the cutting edge. Certified to meet ISO, Mastercard, Visa, American Express and China Union Pay, thus guaranteeing functionality and longevity for financial cards, IDs, and other smart cards.
Cardel’s adhesive range includes solutions for all existing plastics used in card manufacturing, with variants formulated for eco-friendly materials like PETG and recycled PVC blends. Our adhesives are used globally in the production of over 4 billion chip cards every year.
We also provide high-quality lamination plates, press pads, and cassettes, pre-laid magnetic stripes, core sheets, overlays, and more for the production of cards.
Request quote
Request free brochure
Why Choose This Service?
Quality Adhesives
Cardel Hi Bond™ adhesives ensure our customers produce cards that pass the ISO Test standards and remain compliant with major global payment schemes like Mastercard and Visa.Product Supply
Cardel is the largest supplier of chip adhesives in the world, with UK and global representatives able to supply materials locally with short lead-times – even at high volumes.Quality Control
Quality and consistency are vitally essential to us and our customers. We closely monitor quality at all times and utilise precision in-line automatic quality monitoring systems on all our equipment. Cardel Hi Bond™ adhesives are independently lab-tested bi-annually to ensure compliance with SVHC, RoHS, REACH health and safety requirements.
Description
Cardel has developed a wide range of standard and bespoke adhesives to ensure an appropriate product is available for all materials that our clients may use. The Cardel Hi Bond™ Adhesive range includes but is not limited to:
- Hi Bond™ 2 – an economical formulation adhesive designed to deliver adhesion of embedding in commercially challenging sectors – It is typically used in the embedding of GSM (SIM) cards that are manufactured from PVC.
- Hi Bond™ 3 – a high performance adhesive used globally by manufacturers of banking cards subjected to intense ISO and Payment scheme requirements (Mastercard, Visa, China Union Pay). It is particularly suited to cards manufactured from PVC or PVC/ABS blends.
- Hi Bond™ 70-1 – a high performance, long lasting adhesive developed for the demanding identity sector, where 10-year card lifetime may be required. The adhesive is formulated for embedding into Polycarbonate and PVC Cards as well as some PET types.
- Hi Bond™ 70-B (Black) – a variant of Hi Bond 70-1 that is highly adhesive with PVC and Polycarbonate while also protecting against laser energy leakage. This adhesive is used extensively in GSM (SIM) card embedding to protect the chip if laser energy penetrates through the thin layer of plastic on the back of the module cavity. It is compatible with PVC, Polycarbonate and some PET variants.
- Hi Bond™ LT – a specialist adhesive developed to support environmentally friendly card materials like PETG and PETF. It operates at lower temperatures than standard Cardel adhesives, allowing our customers to reduce card distortion and increase the throughput rate of chip embedding.
- Hi Bond™ MPV – one of Cardel’s newly released adhesives. It has been formulated to give high strength bonding of plastic layers to metal sheets for Metal card manufacturing and typically achieves > 20N/cm peel strength, ensuring there is no separation of card layers during use.
Specification

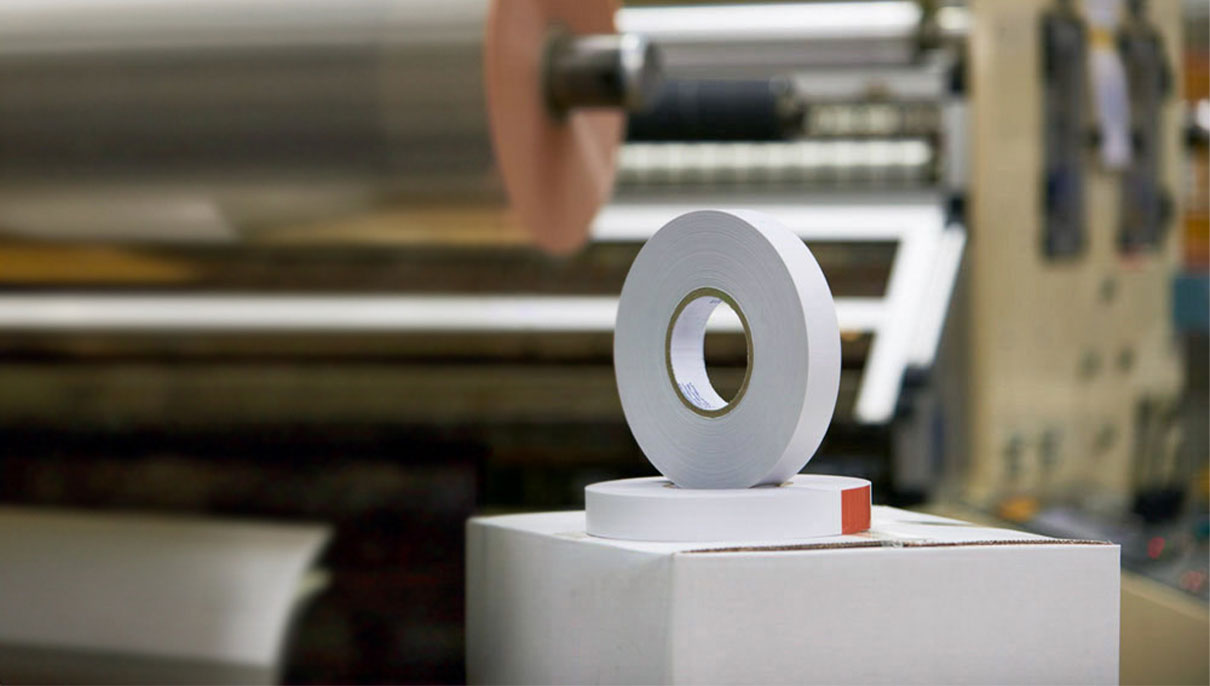

Cardel Hi Bond™ Chip Adhesives are all available in standard lengths of 100m, 200m, 300m or 400m per reel and can be supplied in standard widths of 29mm or 29.5mm and custom widths up to 625mm.
Each Cardel Adhesive has a standard thickness but can be available in custom thicknesses as required ranging from 20 microns to 120 microns.
Rigorous tests are conducted by Cardel and our customers to ensure that our adhesive meets the requirements of ISO, Mastercard CQM, Visa PBS and CUP standards.
The nature of our Hi Bond™ adhesives is such that a long shelf – life of 2 years is assigned which is subject only to undemanding storage conditions (see Cardel TDS documents).
There is no requirement to store Cardel adhesives in special refrigerated conditions.
Choose Cardel
Cardel is an internationally trusted brand with over twenty-five years’ experience in the supply of goods to lamination sectors globally. An estimated 50% of smart cards made globally involve a Cardel product at some point in their manufacture.
We also go beyond supplying premium products – we offer custom solutions tailored to meet your specific needs. From expert advice to hands-on problem solving, our dedicated team works with you every step of the way to ensure exceptional results.
